CNC-80

CNC Spring Machines



AT-C20
CNC Coil Spring Forming Machines

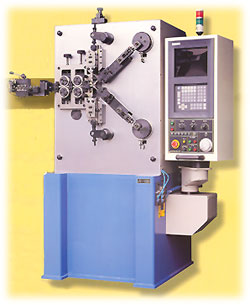

AT-C20 CNC Coil Spring Forming Machines
MODEL AT-C20 (4-6 AXIS)
Wire Diameter (m/m) ø0.5-2.0
Outside Diameter (m/m) (max) ø 50
Wire Feed (m/min) (max) 120
CUT L/R (rpm) (max) 200
Coil Outside Stroke
of the Slide (L/R mm)		 (max) 60
Power Source 220V 3P 50/60 Hz

AT-C20 CNC Coil Spring Forming Machine Applications





CNC 200
12 mm - 20 mm
Full 3 Axis
CNC 100
4 mm - 10 mm
Full 3 Axis
Max Coil Diam 100 mm
Wire feed speed 45 m/min.


CNC 30
.01 mm - 3 mm
Full 4 Axis
Powered reel
Computer integrated
CNC 60
2 mm - 6 mm
Full 3 Axis
Max Coil Diam 70 mm
Wire feed speed 70 m/min.
Click here for a more detailed image
CNC 80
2 mm - 8 mm
Full 3 Axis
Max Coil Diam 80 mm
Wire feed speed 70 m/min.




Vertical Former
CNC MF-50

Wire Dia: 1.8-5.0 mm 0.071-0.197 in
Max. Wire Feed Command Value: 99999.99 mm 3,937 in
Min. Wire Feed Command Value: 0.01 mm .0004 in
Wire Feed Speed: 0-60 m/min 0-236 in/min
Max. Cam Movement Command Value: 359.9°
Min. Cam Movement Command Value: 0.1°
Cam Speed: 0-50 rpm
Maximum O.D.: 100 mm 3.94 in
Maximum Leg Length: 120 mm 4.72 in
Motor, Wire Feed: 7.5 kW
Motor, Cam Feed: 7.5 kW
Weight: 2,800 kg 6,171 lbs
Dimensions:
   Length: 185 cm 72.83 in
   Depth: 160 cm 62.99 in
   Height: 190 cm 74.80 in

Model CNC MF-50

Model CNC MF-50 Samples



Model CNC MF-20


Vertical Former
CNC MF-20

Wire Dia: 0.2-2.5 mm 0.008-0.098 in
Max. Wire Feed Command Value: 99999.99 mm 3,937 in
Min. Wire Feed Command Value: 0.01 mm .0004 in
Wire Feed Speed: 0-87 m/min 0-343 in/min
Max. Cam Movement Command Value: 359.9°
Min. Cam Movement Command Value: 0.1°
Cam Speed: 0-120 rpm
Maximum O.D.: 40 mm 1.57 in
Maximum Leg Length: 60 mm 2.36 in
Motor, Wire Feed: 2.2 kW
Motor, Cam Feed: 2.2 kW
Weight: 800 kg 1,763 lbs
Dimensions:
   Length: 133 cm 52.36 in
   Depth: 58 cm 22.83 in
   Height: 168 cm 66.14 in

Model CNC MF-20 Samples

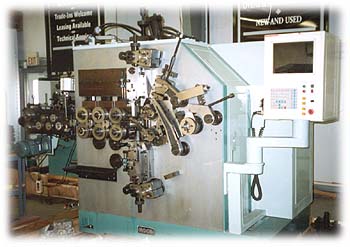

CNC SPRING COILER MACHINES

  FEATURES:
  • 2 axes high speed coiler
  • Servo control MS mode
  • Long wire feed at fixed cam position
  • Garter spring capability
  • Repeat function
  • TEACH/EDIT
  • Edit-on-the-fly
  • Test function
  • Optional spring gauge, air slide, etc.

SPECIFICATIONS:

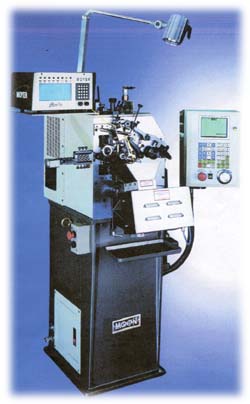

MODEL CSC-208
Wire Diameter 0.1 - 0.8 mm
Min Spring Index 4
Max Spring O.D. 20 mm
Max Feed Length Unlimited
Max Production Rate 550 pcs/min
Max Feed Speed 100 M/min
Motors Capacity 0.75/0.75 Kw
Memory Steps 5000 Steps
Power 220 volt 3 phase
Dimensions (mm) 920 x 760 x 1520
Weight 350 Kgs
The specifications are subject to change without notice



CNC-T8

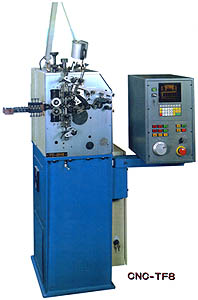

CNC-TF8

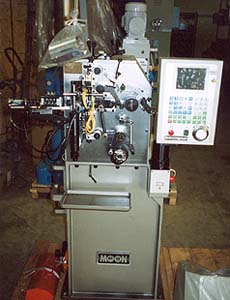

CNC-8
